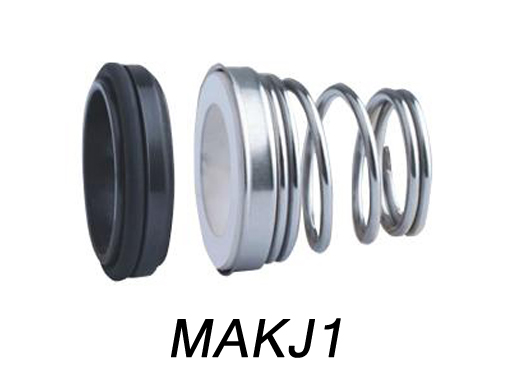

MAKJ1

Operational Conditions:

Temperature: -20oC to +150oC
Pressure: =1.0MPa
Speed: =10m/s

Materials:

Stationary Ring: Carbon, Silicon Carbide
Rotary Ring: Ceramic, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel

Applications

Clean water, sewage water, oil and other moderately corrosive fluids
