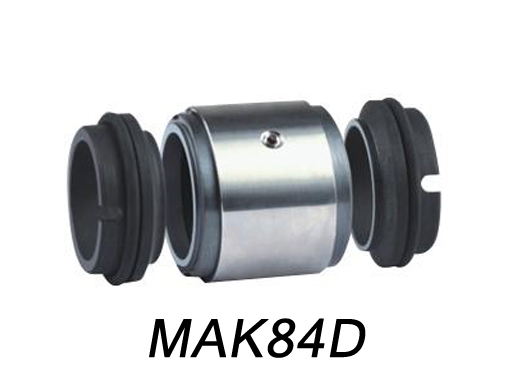

MAK84D

Operational Conditions:

Temperature:-20oC to +180oC
Pressure: =1.2MPa
Speed: =15m/s

Materials:

Stationary Ring: Ceramic,Silicon Carbide,TC,Carbon
Rotary Ring:Carbon, Silicon Carbide,TC
Secondary Seal:NBR,EPDM,Viton,PTFE
Spring and Metal Parts:Steel

Applications

Clean water,sewage water,oil and other moderately corrosive fluids.
