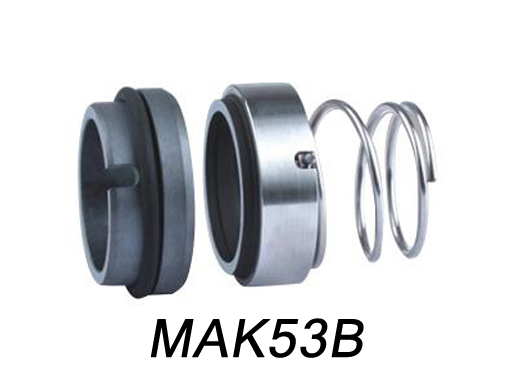

MAK53B

Operational Conditions:

Temperature: -20oC to +180oC
Pressure: =1.0MPa
Speed: =15m/s

Materials:

Stationary Ring: Ceramic, Silicon Carbide, TC, Carbon
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, Viton, PTFE
Spring and Metal Parts: Steel

Applications

Clean water, sewage water, oil and other moderately corrosive fluids
