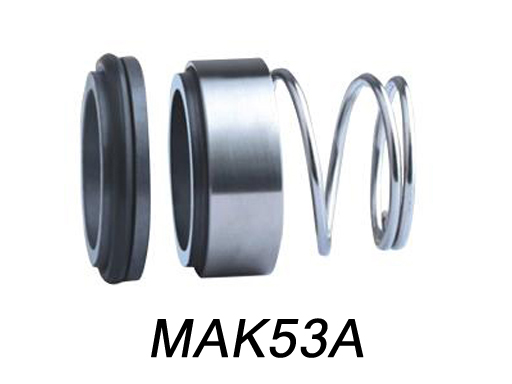

MAK53A

Operational Conditions:

Temperature: -30oC to +200oC
Pressure: =1.2MPa
Speed: =20m/s

Materials:

Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, Ceramic, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel

Applications

Clean water, sewage water, oil and other moderately corrosive fluids
