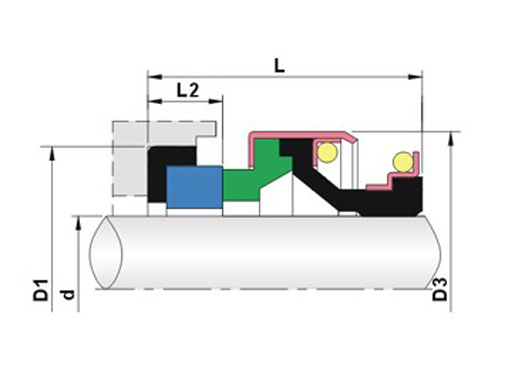

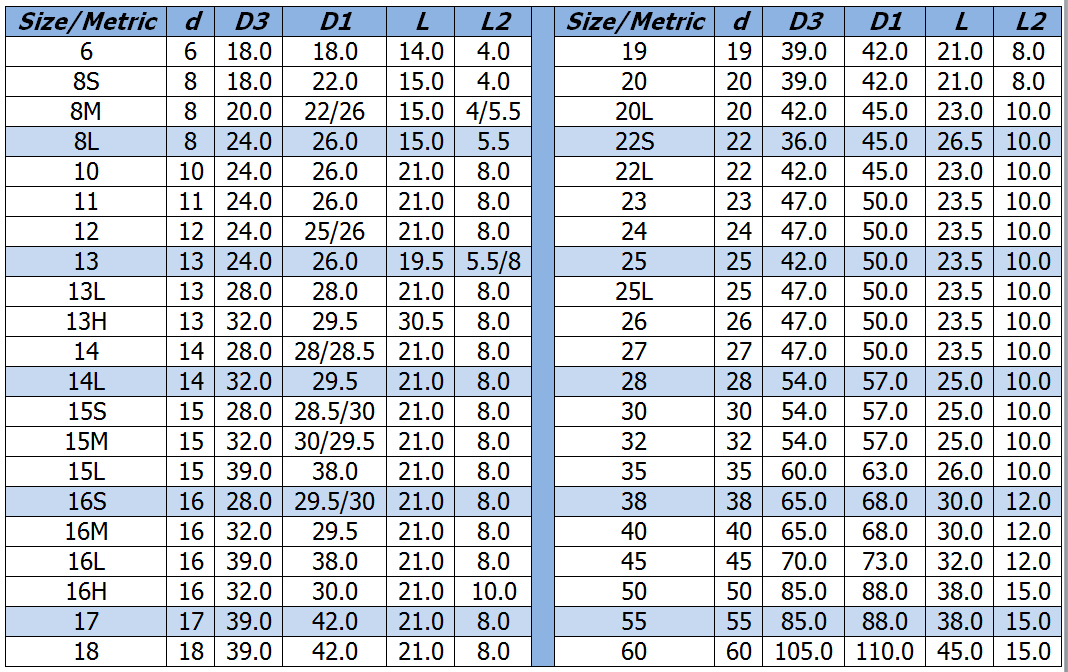

MAK301

Operational Conditions:

Temperature:-20oC to +120oC
Pressure:=0.6MPa Speed:=10m/s

Materials:

Stationary Ring: Ceramic(Alumina),Silicon Carbide Reaction BondedRotary Ring:Q5, Resin Impregnated Carbon Graphite(Furan),Silicon Carbide Reaction BondedSecondary Seal: Fluorocarbon Rubber(Viton), Nitrile (NBR), Ethylene Propylene(EPDM)Spring and Metal Parts: Stainless Steel

•
•
